high quality best price C/C composite products vacuum graphite sintering furnace for graphitization products

Name: high quality best price CC composite products vacuum graphite sintering furnace for graphitization products
Brand: Jingtan
Price: 8 USD

high quality best price C/C composite products vacuum graphite sintering furnace for graphitization products Manufactures

Price : USD8,000-60,000/SET

Brand Name : Jingtan

Certification : CE

Place of Origin : China

MOQ : 1 set

Delivery Time : 60 days

Packaging Details : wooden case

Payment Terms : L/C/T/T

Supply Ability : 10pcs/month

place of origin : Hunan, China

type : Induction Furnace

usage : Sintering Furnace

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Gearbox, Pump

brand name : Jingtan

voltage : 380

weight (t) : 2 T

power (kw) : 120

warranty : 1 Year

key selling points : Remote Monitoring

Temperature Measurement Accuracy : 0.2-0.75%

Temperature Control : Program control and manual control

Temperature Control Accuracy : ≤±1℃

Limit Temperature : 2600℃

Temperature Measurement Range : Temperature Measurement Range

Condition : New

Marketing Type : New Product 2019

Warranty of core components : 1 Year

Showroom Location : Canada, Turkey, United Kingdom, United States, France, Germany, Russia

Applicable Industries : Energy & Mining, New material

Contact Now

Products Description

Product Application

High temperature treatment and graphitization of carbon structural parts (products), C/C composite products, graphene, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and smelted in carbon environment.

high quality best price C/C composite products vacuum graphite sintering furnace for graphitization products

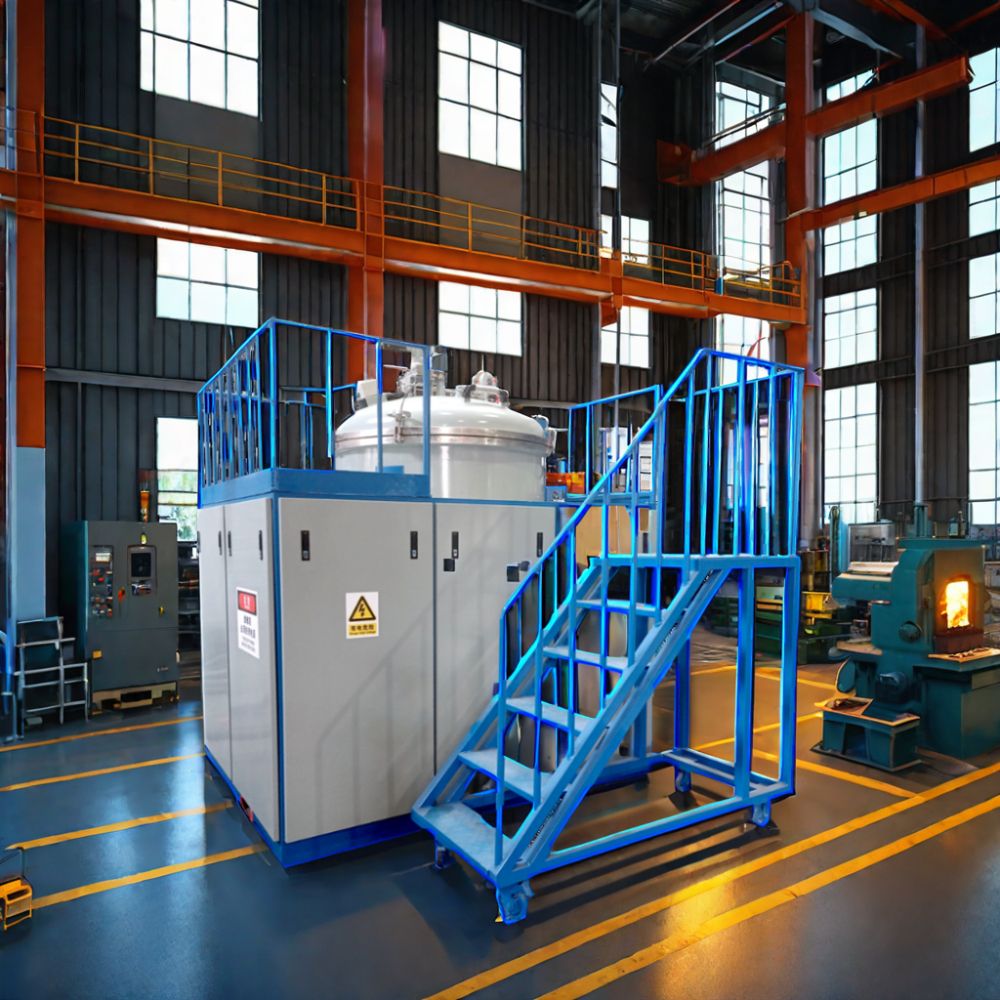

Vacuum Graphite Furnace

A high-performance intelligent heating furnace, introduced by our engineers and technicians, absorbing foreign temperature measurement, temperature control technology, intelligence, new material technology and

furnace design technology. Suitable for high temperature treatment of materials (e.g. carbonization, graphitization, high temperature degreasing, impurity removal, etc.) under vacuum or gas protection.

Model	JT-SML-24-Z	JT-SML-54-Z	JT-SML-128-Z	JT-SML-375-Z	JT-SML-720-Z	JT-SML-1225-Z
High Temperature Zone Volume	200200600	300300600	400400800	5005001500	6006002000	7007002500
Loading Capacity	24L	54L	128L	375L	720L	1225L
Temperature Uniformity	≤±10℃					2500	2500	1500	1500	≤±15℃
Limit Temperature	2600℃						1.2*10^-1	1.2*10^-1	1.2*10^-1	1.2*10^-1	1.2*10^-1
Working Atmosphere in the Furnace	Vacuum, hydrogen, nitrogen, inert gases, etc						2	2	2	2	2
Temperature Measurement	Far infrared optical temperature measurement (double connectors automatic switch)						±10	±10	±15	±15	±15
Temperature Measurement Range	900-3500℃ or 1000-3200℃
Temperature Measurement Accuracy	0.2-0.75%
Temperature Control	Program control and manual control
Temperature Control Accuracy	≤±1℃
Ultimate Heating Rate	60℃/min									25℃/min

Feature 1

(1) Ultra-high temperature furnace body up to 2600℃,

can fully meet the sintering and graphitization of various materials.
(2) Using digital display intelligent temperature control system, high precision temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store

20 pieces of a total of 400 different process heating curve.

Feature 2

(3) Adopt internal circulation pure water cooling system, digital flow monitoring system.
(4) Intelligent PLC security monitoring can be controlled remotely. And it records all parameters with no paper automatically. Water, electricity, gas control and protection system, internal network port connection.
(5) Furnace body is equipped with mechanical explosion-proof valve, with automatic pressure relief function, in order to ensure safety.

Company Profile

Qualification and Patents

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for carbonization sintering furnace

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace

Patent for high temperature graphitization furnace

Patent for high temperature vacuum hot pressure furnace

Patent for high temperature continuous furifing graphitization furnace

Production process

Customer Photoes

Logistics System All Around the World.

Customer Cooperation Cases

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
