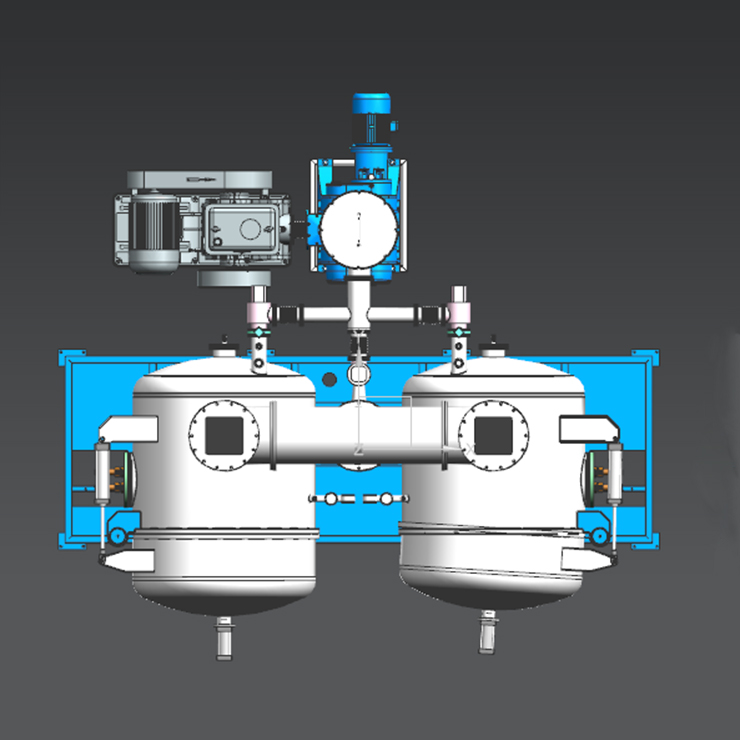

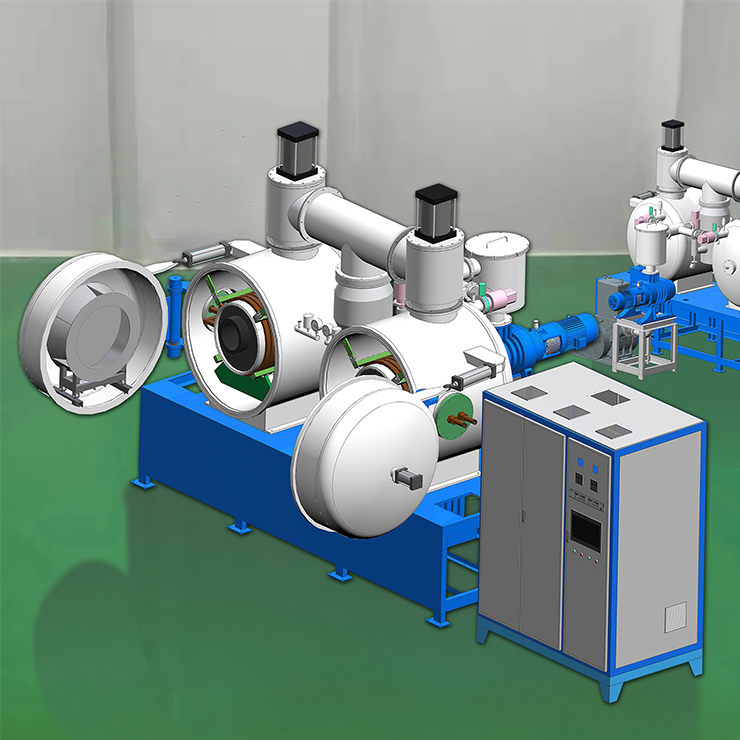

KGPS/IGBT Medium Frequency Vacuum Deposition Furnace Resistance Or Induction Heating

Name: KGPSIGBT Medium Frequency Vacuum Deposition Furnace Resistance Or Induction Heating
Brand: Jingtan
Price: 18 USD

Packaging Details : wooden case packing

Supply Ability : 10pcs/month

Price : USD18,000-100,000/SET

Brand Name : Jingtan

Certification : CE

MOQ : 1 set

Delivery Time : 60 days

Payment Terms : L/C/T/T

place of origin : Hunan, China

type : Induction Furnace

usage : deposition furnace

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC

brand name : Jingtan

voltage : 380

weight (t) : 5 T

power (kw) : 220

warranty : 1 Year

key selling points : Competitive Price

Design Temperature (℃) : 1250-2200

Woring temperature : 900-1200℃

Pressure rise rate (Pa/h) : 0.67Pa/h(150Pa/24h)

Heating method : Resistance/induction

Working atmosphere : vacuum/CH4/C3H6/H2/N2/Ar

Furnace type : Square/roundVertical/Horizontal

Furnace cooling mode : furnace shell water cooling

Infrared instrument : single/double colorimetric

Temperature uniformity : ±5

Limit vacuum Degree(Pa) : 1-100

Condition : New

Warranty of core components : 1 Year

Applicable Industries : Other, semiconductor

Contact Now

KGPS/IGBT Medium Frequency Heating Graphite Resistance Or Induction Graphite Pyrolysis Furnace

Specification

Vacuum deposition furnace:

Mainly used for the preparation of carbon-carbon composite materials, and the deposition furnace is mainly used for the preparation of pyrolytic carbon coating on the surface of graphite, semiconductor devices and heat-resistant scour materials.

Parameter /Model No.	JT-0305-C	JT-0505-C	JT-0608-C	JT-0608-C	JT-0812-C	JT-1120-C	JT-1218-C	JT-1520-C
Working Zone Size φ×H(mm)	300×500	500×500	600×800	600×1200	800×1200	1100×2000	1200×1800	1500×2000
Highest Temperature (℃)	2300	2300	2300	2300	2300	2300	2300	2300
Temperature uniformity(℃)	±5	±5	±5/±7.5	±7.5/±10	±7.5/±10	±10/±15	±10/±15	±15/±20
Limit Vacuum Degree(Pa)	1-100	1-100	1-100	1-100	1-100	1-100	1-100	1-100
Limit Vacuum Degree(Pa)	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67
Heating method	Resistance/induction	Resistance/induction	Resistance/induction	Resistance/induction	Resistance/induction	Resistance/induction	Resistance/induction	Resistance/induction

KGPS/IGBT Medium Frequency Vacuum Deposition Furnace Resistance Or Induction Heating

Design temperature	1250℃/1650℃/1800℃/2200℃
Common temperature	900~1200℃
Vacuum degree	< 50Pa
Pressure rise rate	6.67pA /h(or 150Pa/24h) in cold state of empty furnace
Heating mode	graphite resistance heating or induction heating, independent temperature control, good temperature uniformity
Atmosphere medium	vacuum /CH4/C3H6/H2/N2/Ar

Gas control mode	mass flow meter control, multi-channel gas path, uniform flow field, no deposition dead Angle, good deposition effect;Multi-stage and efficient exhaust treatment system, environmentally friendly, easy to clean up
Furnace type	square, round, vertical or horizontal structure (non-standard design), fully enclosed deposition chamber, good sealing effect, strong anti-pollution ability;
Furnace cooling mode	furnace shell water cooling, external circulation quick cooling system can be selected, short cooling time, high production efficiency;

Structure form	horizontal - side discharge, vertical - up/down discharge
Locking mode	manual/automatic
Shell material	inner stainless steel/all stainless steel
Insulation material	carbon felt/graphite felt/carbon fiber cured felt
Infrared instrument	single colorimetric/double colorimetric
Power supply	KGPS/IGBT(only suitable for medium frequency heating) Product parameter:

Company Profile

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for high temperature graphitization furnace:

Patent for high temperature vacuum hot pressure furnace:

Patent for high temperature continuous furifing graphitization furnace:

Patent for carbonization sintering furnace:

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace

Production process

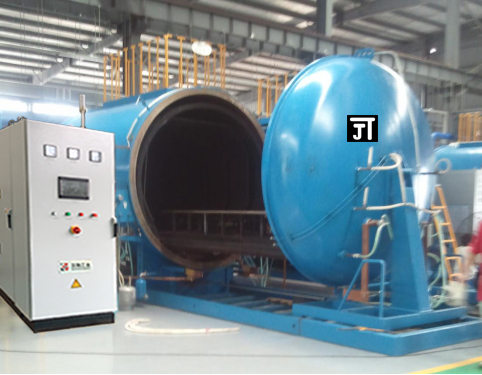

Customers Photos

Customer cooperation cases:

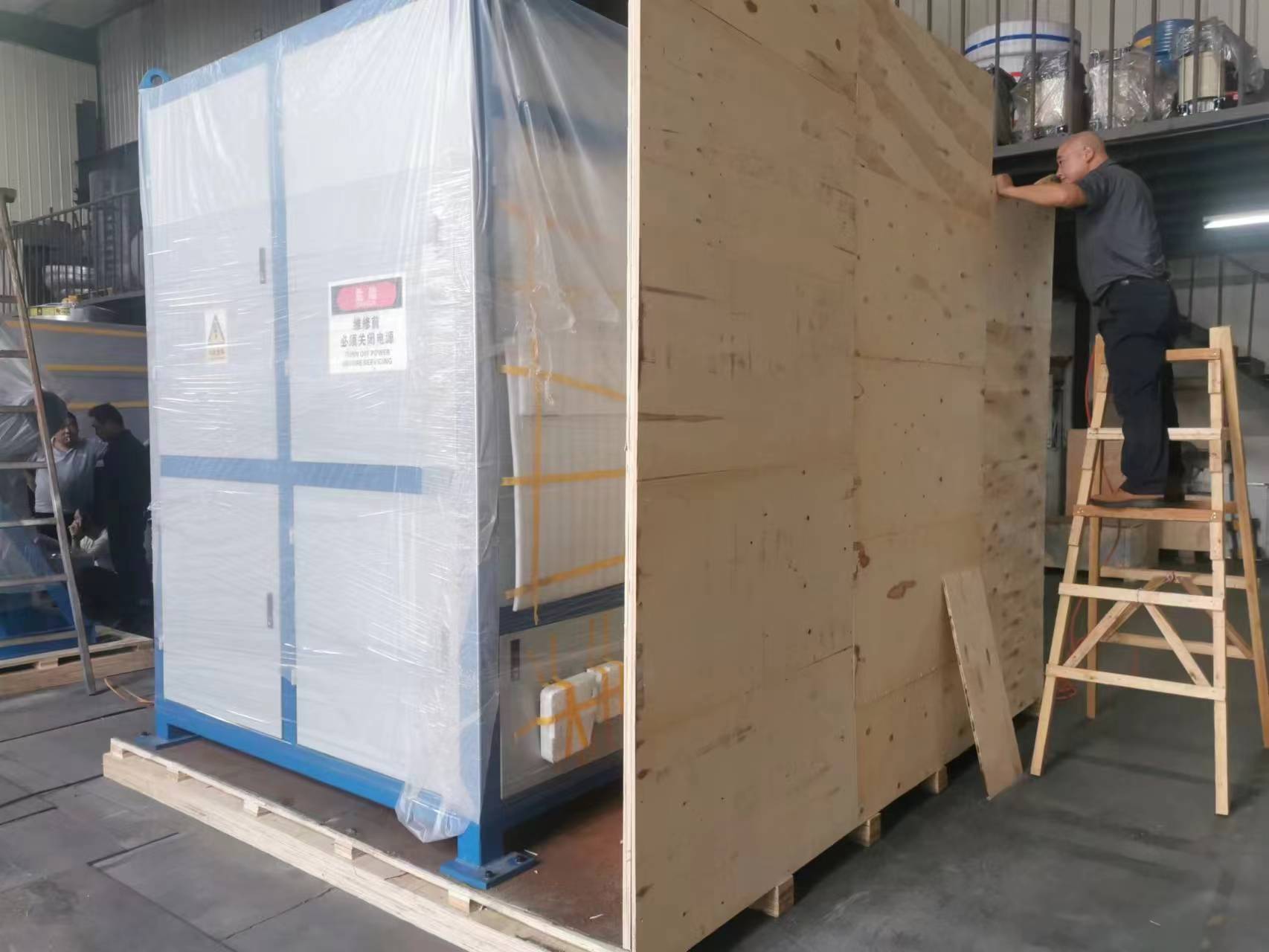

Our logistics system is all around the world.

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
