High Temp Graphite Continuous Furnace , Boat Pusher Sintering Furnace Three Phase 380V

Name: High Temp Graphite Continuous Furnace Boat Pusher Sintering Furnace Three Phase 380V
Brand: Jingtan
Price: 10 USD

Price : USD10,000-80,000/SET

Brand Name : Jingtan

Certification : CE

MOQ : 1 set

Delivery Time : 60 days

Packaging Details : wooden case

Place of Origin : China

Payment Terms : L/C/T/T

Supply Ability : 5pcs/month

place of origin : Hunan, China

type : Induction Furnace

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, motor, Pump, Cylinder

brand name : Jingtan

voltage : 380

weight (t) : 2 T

power (kw) : 150

warranty : 1 Year

key selling points : High Productivity

Max. Temperature(℃) : 2800℃

Temperature Control Method : PID auto control

Protective Gas : Ar

Voltage : three phase 380V

Temperature Measurement Method : push boat intermittent feeding

Cooling Mode : cooling by circulating water

Condition : New

Warranty of core components : 1 Year

Showroom Location : Canada, Turkey, United Kingdom, United States, France, Germany, Brazil, Saudi Arabia, India, Russia, South Africa

Marketing Type : New Product 2022

Applicable Industries : Energy & Mining, Other, New material

Contact Now

Combining High Temperature And Chemical Purification Together Remote Control System Graphite Pusher Sintering Furnace

Product Description

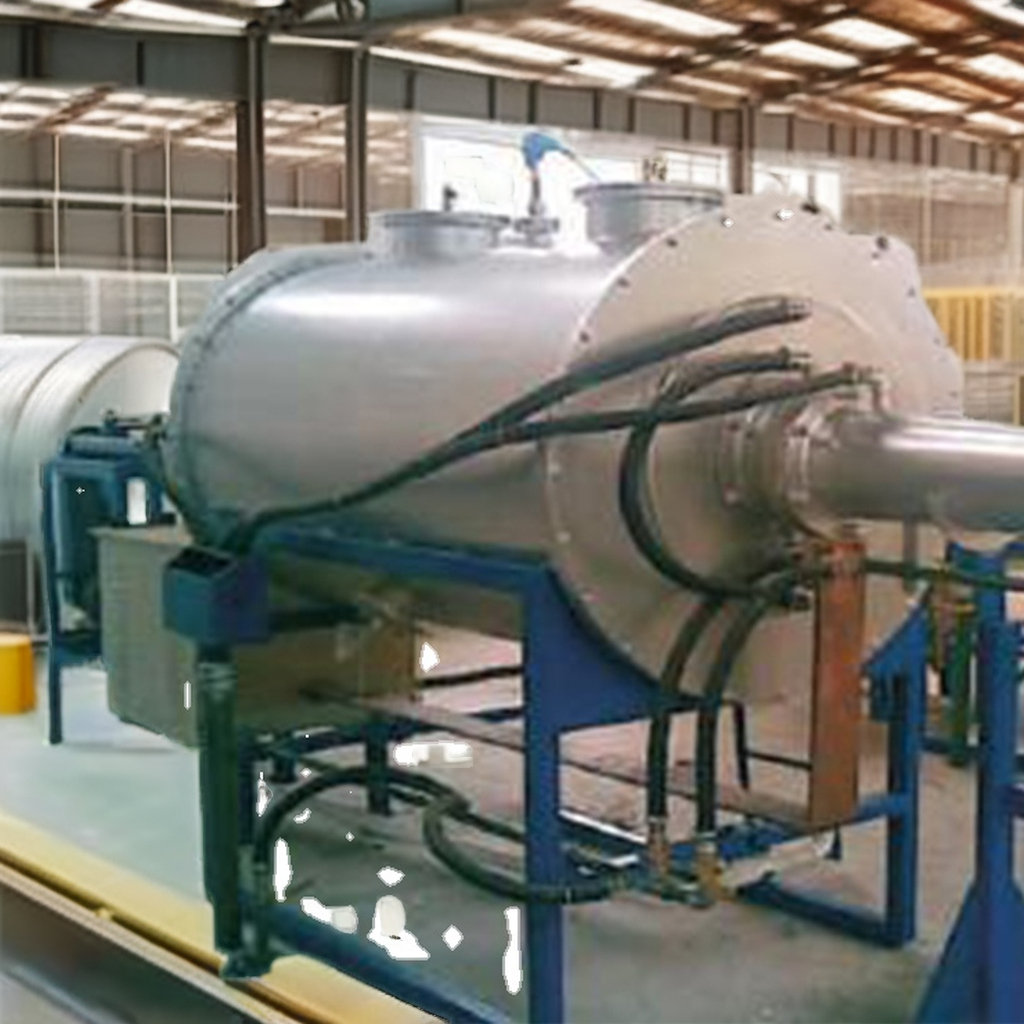

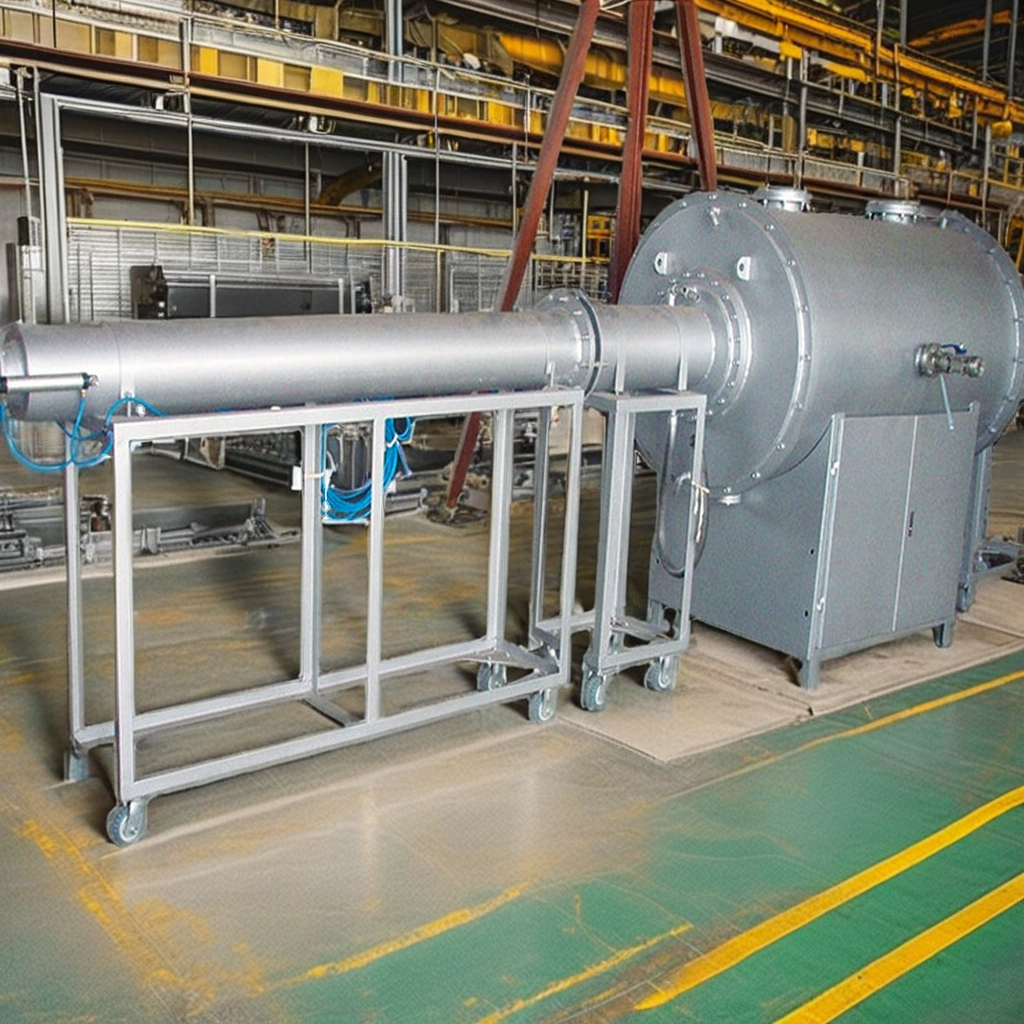

Graphite Boat Pushing Furnace

It is used for continuous high temperature
graphitization purification of graphite powder and products, and can realize the purification process combining high temperature

method and chemical method. Its operating temperature can reach 2600℃, and can work continuously for a long time.

High Temp Graphite Continuous Furnace , Boat Pusher Sintering Furnace Three Phase 380V

Model	JT-ZTL-10	JT-ZTL-20	JT-ZTL-30
Capacity(kg/d)	200	400	700
Max. Temperature(℃)	2800
Temperature Control Method	PID auto control
Protective Gas	Ar
Rated Power(kw)	120	180	220
Voltage(V)	three phase 380v
Temperature Measurement Method	infrared measurement
Working Method	push boat intermittent feeding
Boat size	Φ120*320mm	Φ150*400mm	Φ200*420mm
Cooling Mode	cooling by circulating water

(1) Adopting new heating technology, high service temperature and long service life;
(2) Long service life of furnace tube, continuous production 20-30 days without stop;
(3) Continuous material in and out, good sealing performance, less gas consumption;
(4) Adopting push-boat production mode, continuous production;

(5) Automatic boat loading, pushing, discharging and reversing mechanism, stable product quality and low labor intensity;
(6) The length of furnace body can be increased or decreased according to the actual situation;
(7) With remote control, fault diagnosis and software upgrade;
(8) Three-phase power supply, three-phase power balance, stable performance.

Company Profile

Qualification and Patents

Production process

Customer Photos

Customer Cooperation Cases

Logistics System

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.

Contact me as follow:

Graphite Boat Pushing Furnce

It is used for continuous high temperature
graphitization purification of graphite powder and products, and can realize the purification process combining high temperature
method and chemical method. Its operating temperature can reach 2600℃, and can work continuously for a long time.
